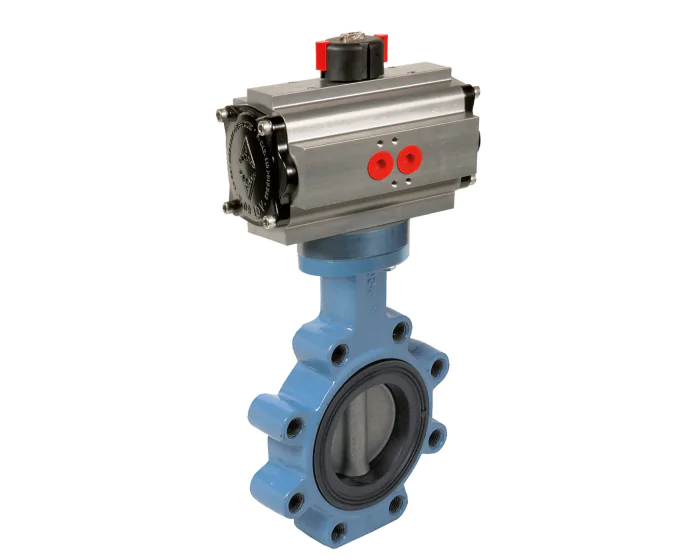

The 1164 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M disc, up to DN200. It is a lug type.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | Yes |
| Lockable | Yes |
| ATEX compatible | Yes |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 60 |
| Seat | FKM |
| Body material | Ductile iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| Connections | Between flanges PN10 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 2 years |
| CE | Risk category II |
| Range | TTV |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10 Ductile iron Concentric DN40 - 1''1/2 Double acting | 261423015100 | S1003349 |
€316.87
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN40 - 1''1/2 Spring return | 261423016101 | S1003350 |
€354.31
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN50 - 2'' Double acting | 261424015100 | S1003351 |
€322.31
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN50 - 2'' Spring return | 261424016101 | S1003352 |
€356.56
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN65 - 2''1/2 Double acting | 261425015101 | S1003353 |
€371.96
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN65 - 2''1/2 Spring return | 261425016102 | S1003354 |
€420.96
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN80 - 3'' Double acting | 261426015101 | S1003355 |
€505.91
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN100 - 4'' Double acting | 261427015102 | S1003356 |
€514.09
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN100 - 4'' Spring return | 261427016103 | S1003357 |
€519.79
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN125 - 5'' Double acting | 261428015102 | S1003358 |
€614.04
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN125 - 5'' Spring return | 261428016104 | S1003359 |
€718.36
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN150 - 6'' Double acting | 261429015103 | S1003360 |
€777.61
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric DN200 - 8'' Double acting | 261430015104 | S1003361 |
€1,052.26
(excl. btw)
|
add to cart |
